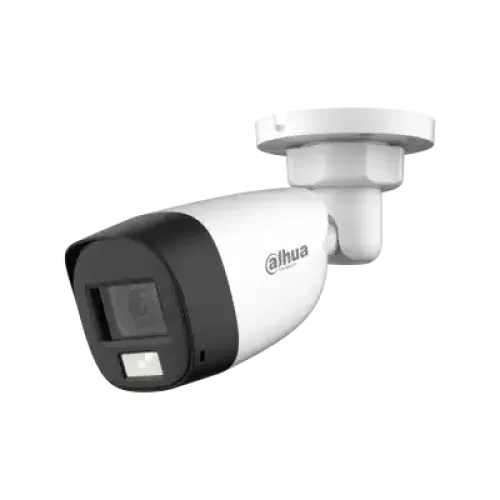

Dahua DH-HAC-HFW1209TLMP-A-LED Full-color HDCVI Bullet CC Camera

Original price was: ৳ 3,500.Current price is: ৳ 3,000.

  • 2MP (1920 × 1080 px) Resolution

    3.6mm fixed lens

    40m Night Vision IR Distance

    Build in Microphone

    1 Year Brand Warranty

Specification

Basic Info
Brand

Dahua
Series

Full Color
Model

DH-HAC-HFW1209TLMP-A-LED
Part No

DH-HAC-HFW1209TLMP-A-LED-0360B

Design
Product Type

CC Camera
Form Factor

Bullet
Camera Type

Fixed
Usage

Indoor & Outdoor
Casing

Metal, Plastic
Body Color

White
Mount

Vertical Pole / Wall / Ceiling
Working Distance

40 Meter

Camera
Image Sensor

1/2.8 inch CMOS
Mega Pixel

2.0MP
Camera Resolution

1920(H)×1080(V)
Scanning System

Progressive
Electronic Shutter Speed

PAL: 1/25 s–1/100000 s

NTSC: 1/30 s–1/100000 s
Signal System

4 Signals over 1 Coaxial Cable
Day & Night

Full Color
Night Vision

Yes
Night Vision Mode

Color
Angle Adjustment

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens
Lens Type

Fixed-focal
Mount Type

M12
Focal Length

3.6mm
Max. Aperture

F1.6
Field of View

H: 106.0°; V: 56.5°; D: 103.6°

Illuminator
Illuminator

Auto; Manual
IR Range

Up to 40 Meter
Minimum Illumination

0.01 Lux/F1.6, 0 Lux Backlight on
IR On/Off Control

 Auto / Manual

DORI
DORI Distance

3.6 mm, D: 55.2 m, 22.1 m, R: 11 m, 5.5 m

Image Settings

24/7 color imaging
Wide Dynamic Range (WDR)

Digital WDR
SNR

 >65 dB
White Balance

Auto; Manual
Privacy Mask

Off/On (8 area, rectangle)

Video
Video Output

BNC (HDCVI/TVI/AHD/CVBS switchable)
Frame Rate

CVI: 25 fps @ 1080p; 25 fps @ 720p

AHD: 25 fps @ 1080p

TVI: 25 fps @ 1080p

CVBS : 960H

Audio
Built-in Mic

Yes
Environment Noise Filtering

2D NR

Power
Power Supply

12 V±30% DC
Power Consumption

≤4.9 W (12V DC, Backlight on)

Security
Ingress Protection

IP67

Certification
CE

CE (EN55032, EN55024, EN50130-4,EN60950-1)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

Additional Info
Others

A True-to-life Image with Impressive Clarity of HDCVI technology
Made in

China

Physical Description
Dimensions

198.5 mm x 80.2 mm x 76.2 mm
Weight

300 gm

Warranty
Warranty

1 Year
Warranty Details

1 Year Brand Warranty
Warranty Policy

No Warranty for Physical & Burn Damage

Description

The Dahua DH-HAC-HFW1209TLMP-A-LED-S2 2MP Full Color HDCVI Bullet Camera has image Sensor of 1/2.8″ CMOS. It has effective pixel rate of 1920(H)×1080(V), 2MP. Dahua DH-HAC-HFW1209TLMP-A-LED-S2 comes with electronic shutter speed PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s. Its minimum illumination is 0.01 Lux/F1.6. HAC-HFW1209TLMP-A-LED-S2 has the IR distance of up to 40m (65.61 ft). Lens Type Fixed lens / Fixed iris. Its mount type is M12 with focal length 3.6mm, 6mm. Max Aperture F1.6, Angle of View: 3.6 mm: 103.6° × 86.9° × 46.3° (diagonal × horizontal × vertical), Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°. This Bullet Camera has the video resolution of 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480). Frame Rate CVI: PAL: 1080p@25 fps; 720p@25 fps; NTSC: 1080p@30 fps; 720p@30 fps. AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps. NTSC: 1080p@30 fps.Day/Night Auto (ICR) / Manual. Less than 95% RH. It also has ingress protection & vandal resistance IP67. The dimensions are 198.4 mm × 80.2 mm × 76.2 mm (7.81″ × 3.15″ × 3″), also net weight 0.3 kg (0.66 lb) & gross weight0.45 kg (0.99 lb). Dahua DH-HAC-HFW1209TLMP-A-LED-S2 2MP Full Color HDCVI Bullet Camera comes with 1 year of warranty.
